In a recent remote technical support session, I helped a client work out why they were having a problem with the routing chain for their studio outboard equipment.
This is the signal path they wanted to achieve:
- Pro Tools plays back an audio track

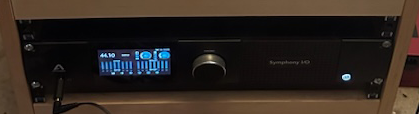

- The track’s audio is routed to Symphony I/O Outputs 7+8

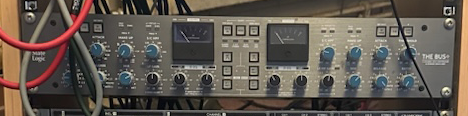

- Symphony Outputs 7+8 are connected by jack cables to the SSL Bus+ Inputs
- SSL Bus+ Outputs connected by jack cables to Symphony I/O Inputs 7+8
- Pro Tools records onto a new audio track

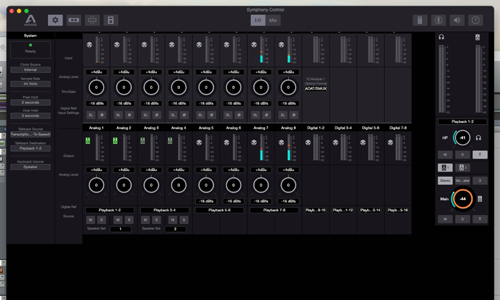

My client talked me through the chain and I had a look at their software settings using AnyDesk. I found the problem within the Apogee Control app.
By default, Outputs 1-8 are all set to monitor signal from Playback 1-2.
Changing the Digital Ref value to match the Playback channels received from Pro Tools solved the problem. The signal path now flowed exactly as my client wanted it.
