UAD Apollo No Input Signal in Logic Pro? A Quick Fix
The Client’s Challenge
A client contacted me in a state of understandable frustration. His recording setup, centred around a Universal Audio Apollo Solo and Logic Pro, had been working perfectly one day, only to fall silent the next. The microphone, correctly plugged into the first input, was yielding absolutely no signal in his Logic session. He’d checked the cables, restarted the Mac, and confirmed the basics, but the channel remained stubbornly dead. When your creative tools inexplicably fail, it’s not just an inconvenience; it can bring a project to a grinding halt. He needed an expert eye to trace the signal and find the break in the chain.
System at a Glance:
- DAW: Logic Pro
- Audio Interface: Universal Audio Apollo Solo
- Operating System: macOS
- Symptom: No input signal from microphone on Input 1, despite being physically connected and selected in Logic.
Diagnosis: The Misdirected Signal

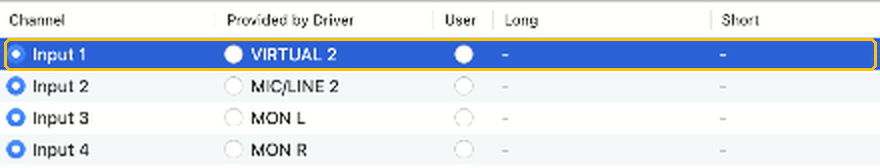

My investigation began by verifying the obvious. Connected remotely via AnyDesk, I could see that macOS and Logic Pro both correctly recognised the Apollo Solo. The track in Logic was armed for recording and set to ‘Input 1’. Everything on the surface appeared correct. This is a classic ‘Edge Case’—the software *thinks* it’s listening to the right channel, but the hardware is telling a different story.
This discrepancy led me to suspect the issue wasn’t in Logic, but one layer deeper, in the Apollo’s own control software. The key was to investigate the UAD Console application, which governs the interface’s internal routing before the signal ever reaches the DAW.
Understanding the UAD Console I/O Matrix
Think of the I/O Matrix as the digital patchbay or telephone switchboard for your audio interface. It dictates which physical input (like your microphone port) is sent to which digital channel that your DAW sees. Normally, Physical Input 1 is routed to Digital Channel 1. However, this routing can be changed, often for complex monitoring setups. It’s a powerful feature, but also a place where a single incorrect setting can cause total signal loss.

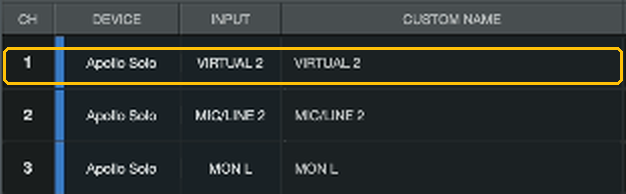

Upon opening the I/O Matrix within the Console’s settings, the culprit was immediately apparent. For some unknown reason, the physical ‘Mic/Line 1’ input was no longer routed to its corresponding channel. Instead, it had been digitally re-patched to ‘Virtual 2’. Logic was dutifully listening to Input 1, but the Apollo was sending the microphone’s signal to an entirely different destination. It was like waiting for a package at your front door, unaware that the courier had been instructed to deliver it to the back garden.
The Fix: Reconnecting the Wires
The solution was thankfully as simple as the diagnosis was nuanced. By re-establishing the correct digital connection within the I/O Matrix, we could restore the flow of audio. The client was relieved to see that it wasn’t a hardware failure, but a simple (if deeply hidden) software toggle.
Open the UAD Console application.
Navigate to the bottom-left of the window and click SETTINGS.
In the settings panel, go to the I/O MATRIX tab.
In the INPUT tab, locate the channel labelled MIC/LINE 1.
Click the dropdown menu (which likely showed ‘VIRTUAL 2’) and re-select MIC/LINE 1. This ensures the physical input matches the digital channel.
As soon as the change was made, the meters in Logic Pro sprang to life. We ran a few test recordings to confirm stability and then spent the rest of the session fine-tuning his gain staging and monitoring setup, ensuring he felt confident and in control of his system once more.
Additional Reflections
The Ghost in the Machine
How did this setting change on its own? The client was certain he’d never ventured into the I/O Matrix before. We discussed potential causes, with the most likely being a minor data corruption event caused by an improper shutdown or power surge. It’s highly unusual for such an event to change a single, specific setting rather than resetting the whole device to factory defaults, which makes these problems particularly baffling for the user. It validates the feeling that ‘you’ve done nothing wrong’ because, in this case, it was a random system anomaly. The key takeaway is that modern audio systems have many layers of software control, and the fault is often hidden in the one you use the least.
If you are seeking professional help with a Universal Audio Apollo that has no input signal in Logic Pro due to a Console I/O Matrix routing error, one-on-one remote support services are available from Audio Support.
